Video Demo For VVDI Key Tool Copy Toyota G Chip

The following is a video demo using the Xhorse vvdi key tool for remote manufacturers to replicate the Toyota G chip.
Video demo is the Chinese version, the English version also do the same work.

XHORSE VVDI Key Tool Remote Maker English language
Xhorse VVDI Key Tool supports most common remote types in the market; it is reliable and easy to use. VVDI key tool can perform these functions:
edit transponder, clone transponder, test frequency, clone Remote, generate remote, generate garage door remote controller, unlock smart card etc. In a word, Xhorse VVDI Key Tool remote generator is a device with multi-functions.

OBDSTAR X300M change KM on 2008 Porsche Cayenne

In this article fobdii enginner will share the experience of how to change KM on Porsche Cayenne 2008 by OBDSTAR X300M .

The device you need: OBDSTAR X300 Odometer Adjustment Tool.

X300M Change KM for Cayenne 2008 Procedure(Below picture show the mileage before adjusting 234574km )

STEP 1: Connect OBDSTAR X300M to your Porsche and Power on the programmer.

STEP 2: Select VEHICLES->MILEAGE ADJUSTMENT->PORSCHE->PORSCHE V30.12

STEP 3:Screen display “initializing…”–>”authorizing…”
Select Cayenne->Cayenne-2009->MILEAGE ADJUSTMENT

STEP 4:Screen display”communication…”–>enter a filename to save,here input 11100000
OBDSTAR X300M managed to read the curent mileage(error does not exceed 10km)

STEP 5:Input new mileage 345430

STEP 6:Screen dispaly”adjusting mileage…”,then adjustment complete.

Finish,the dashboard displays the new mileage as what is set just now.

How to Update Original Xhorse VVDI Key Tool Software?

Original XHORSE VVDI Key Tool

Xhorse VVDI Key Tool remote maker supports most common remote types in the market; it is reliable and easy to use.

VVDI key tool remote generator can perform these functions:

Edit transponder, clone transponder, test frequency, clone Remote, generate remote, generate garage door remote controller, unlock smart card etc. In a word, Xhorse VVDI Key Tool is a device with multi-functions.

Update Original Xhorse VVDI Key Tool Software

Select “Update” option on function menu
Go to VVDI KEY Tool SYS Set to update
vvdi-tool-update-1
Connect remote maker with PC via a USB cable
Click “Update Online” button to start upgrade
Wait for update completed
vvdi-tool-update-2

SKP1000 tablet key programmer User manual in English

SKP1000 Tablet Auto Key Programmer A Must Tool for All Locksmiths Perfectly Replaces SuperOBD SKP900 and CI600 Plus
SKP1000 Tablet Auto Key Programmer, English version of Lonsdor CI600 Plus,perfectly Replaces SKP900 Key Programmer. Performs immobilizer, mileage adjustment, remote controller, Oil/service Reset, throttle body adjustment, EPB, pin code calculation and special function.

Content

  1. Product description. 1

1.1 Supported protocol 2

1.2 Package Includes. 2

  1. Function Menu Instruction. 3

2.10 Main menu basic functions. 3

2.11 immobilizer function: 4

2.12 Mileage adjustment via OBD.. 5

2.13 New remote system programming. 6

2.14 Oil/Service reset 6

2.15 throttle body adjustment 7

2.16 EPB(Electric park brake). 8

2.17 Immo PINCODE reading. 8

2.18 Personalized settings. 9

2.19 Special functions. 10

2.20 System settings. 10

2.21 Update Firmware. 10

  1. How to use SKP1000 to program key on specific car model?. 10
  2. Update Firmware Procedure. 13



1. Product description

SKP1000 is Multifunction programmer with 4’inch touch screen, mainly designed for auto Key programming. covers all functions of SuperOBD SKP-900 key programmer. SKP-1000 is a convenient device which can perform immobilizer, mileage adjustment, remote controller, Oil/service Reset, throttle body adjustment, EPB, pin code calculation and special function. Integrates more application and service, such as Maintenance Database, remote assistant, and One Key Update etc.

— Confirm      — Back

— Up                — Down

— Left              — Right

— Smart remote controller frequency detection area

–Help

SN: Serial Number



1.1 Supported protocol

SAE-J1850 PWM, SAE-J1850 VPW, KWP2000, ISO-9141, CANBUS, SINGLE CAN



1.2 Package Includes

1* Main unit

1* touch pen

1* main cable

1* Honda 3pin adapter

1* Kia 20pin adapter

1* Hyundai / Kia 10pin adapter

1* Haima 7pin adapter

1* power adapter

1* TF card

1* TF card reader

1* USB cable

1* CD with user manual



2. Function Menu Instruction

2.10 Main menu basic functions

Auto functions

Choose ” Auto functions” to perform immobilizer, mileage adjustment, remote system,

Oil/service Reset, ETC , EPB, pin code calculation, personal settings and special

function.

2.11 immobilizer function:

Clear key memory;
Program keys, proximity keys, smart key, flip keys;
Program after-market and OEM keys;
Read keys from immobilizer memory
New mechanical key number programming;
Vehicle identification key programming;
Reset ECU& Reset immobilizer;



Choose “Immobilizer”, then the car brand shown as below.



2.12 Mileage adjustment via OBD

Choose “Adjust mileage”, then the car brand shown as below.



2.13 New remote system programming

Choose “Remote system”, then the car brand shown as below.



2.14 Oil/Service reset

Choose “Maintenance”, then the car brand shown as below.





2.15 throttle body adjustment

Choose “ETC”, then the car brand shown as below.



2.16 EPB(Electric park brake)

Choose “EPB”, then the car brand shown as below.

Woks on Changhe, Ford, Suzuki, Mazda, Chery, Kia, Nissan and Hyundai.



2.17 Immo PINCODE reading

.Immo PINCODE reader for many vehicles and no need pin code when programming keys for many vehicles.



2.18 Personalized settings

Incl. Language, Reset, Safe Warn, steering Angle, TPS and other.

2.19 Special functions

Plug into the adapter to perform special functions.



2.20 System settings

Choose ” System settings” to read the machine basic info.



2.21 Update Firmware

Click on “Firmware update” to update the system or the Adaptor.



2.22 User program test

Choose “User program test” to reset the SKP1000 machine to collect corresponding data.



3. How to use SKP1000 Key Programmer to program key on specific car model?

Step-by-step procedure:

For example, to program smart key on Hyundai SONATA 8, firstly connect the main cable to the machine, then plug the OBDII adapter to the car.

Power on the SKP1000 machine, until you see the LOGO, press [YES] to main menu, Choose “Immobilizer”, press “Yes” to vehicle list.



Choose model: Hyundai, press [Yes] to enter.



Choose “Smart key”, press [Yes] to enter.



Choose ” by Vehicle”, press [Yes] to enter.



Choose “SONATA 8 (with slot), press [Yes] to enter.



Choose “Smart key (with slot), press [Yes] to enter.



Follow the tip to turn off ignition, press [Yes]



Follow the tip to open the door and close for one time, press [Yes].



Choose “Program Smart Key”, press [Yes]



Follow the tip, insert the smart key into the slot, and you can hear alarm sound, turn off the ignition, press [Yes].



Input the password



Check if the password is correct, press [Yes] to confirm.



The first smart key program successfully, and it will ask you if you program the next one, press [Yes] to confirm.



Insert the second smart key into the slot, you can hear the alarm sound, press [Yes].



Program key successfully, press [NO] to back.



With two new smart keys, you could start the car, if you need to add more keys, just repeat the above steps.



4. Update Firmware Procedure

Before update firmware, please take out the TF card and insert it into the card reader, then plug into the computer USB port. Double click “My Computer”, find out ” local Disk (H:), right click to choose “Format”.



Tip: Tick on the “Quick format” and click “Start.

After complete format, go to the official site to download the update file, then copy and paste the file into the TF card, after finish, plug the TF card into the machine, power on the machine to the main interface.

Click on “Firmware update” to update the system or the Adaptor.



Firstly choose “System firmware”, press [Yes], the procedure shown as below:



Update Firmware succeed shown as below, Press [NO] to back.



Choose ” Adapter update”, after finish, reboot the machine to go on use SKP1000.



Done.

SKP1000 Read Fiat Siena ISO code and Program ID48 Special Key via OBD

Older Fiat Siena or Palio are required to remove ECU or write key to start to make new key. Here is revolutionary solution on getting Fiat ECU ISO code and programming special ID48 chip key by using SKP1000 key programmer via OBD directly.

SKP1000 tablet auto key programmer=SKP900+ Lonsdor CI600 Plus.


Lonsdor SKP1000 Key Programmer Instruction:

Step 1: Read ECU ISO code (security pin code)

Select car brand: Fiat

select-read-iso-code
Select read iso code
select-immo-system
Select Electronic immobilizer system
read-iso-code
Select read iso code
disconnect-battery
After read ecu iso code success, disconnect the battery.
If read iso code failed,please disconnect the battery and try again
(Anyway, disconnect the battery)
read-car-info
SKP-1000 read Fiat info and fiat iso code
Press YES to continue
working-key
Check SKP1000 Key Programmer if you have a working key
If yes, Press YES button to continue
turn-ignition-on
Turn ignition to ON position
turn-ignition-off
Turn ignition to OFF position
turn-ignition-on
Turn Ignition ON
read-iso-code-success
Read iso code success
enter-iso-code
manually enter 5-digit iso code
skp1000-read-immo-data

SKP1000 will read the immo data, please write download the numbers (will be used to generate chip)

Step 2. Generate Fiat special ID48 chip

generate-special-chip

Select Fiat common chip to generate special chip

generate-fiat-id48-special-dealer-key
select generate Fiat ID48 special dealer key
immo-adpater
Insert the immo adapter into the SKP1000 car key programmer, select Special function and select Generate Fiat chip
insert-id48-chip
Insert the blank ID48 chip into the coil of the adapter

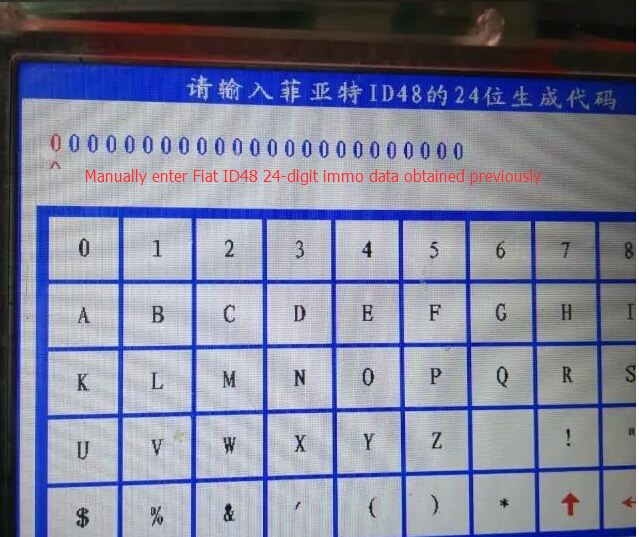

enter-immo-code
Manually enter 24-digit immo code (read previously)
immo-code-marked-red
Enter 24-digit code marked red
confirm-immo-code

confirm the entered digits

Step 3: Program chip key

select-program-key

select Program key

select-siena-key-programming
Select Siena key programming,
SKP1000 will also Car program key for Fiat 500, Boyue,Palio,Leap,viaggio and Perla
select-immo-system
Select Electronic immobilizer system
select-obdii-connector
Select OBDII connector
turn ignition to ON position
select-program-keys
select Program key
Key without programming cannot be used
Press YES to continue
enter-iso-code
enter 5 digits iso code
confirm
program-more-key
continue to program more keys
Press YES to continue
change-next-key
please change next key
program-success
If the dashboard indicator goes off, program success.
Disconnect SKP 1000 and test the new key.

Yanhua Digimaster III V1.8.1707.21 adds Key Unlock/Reset Function Free

Original Yanhua Digimaster 3 odometer correction tool and CKM100 car key master key programmer released new upgrade on 27th, July 2017.

Digimaster III V1.8.1707.21 Update Feature (2017-7-27):

new add car models for odometer adjustment and airbag resetting models.
New added odometer adjustment:
1. American GM Buick Regal 24C32
2. American GM Buick LaCrosse 24C32
3. American GM Buick Verano 24C32

New added airbag resetting:
1. Luxgen 28556KM120



Digimaster/CKM100 New upgrade developed key unlock and reset functions. Free to all. (But require to work with DR key adapter)



Digimaster3/CKM100 Unlocking / Reset key data car models list

Car model PCB mainboard no./frequency/key No.
Audi PCB mainboard no:233.453.111-02
315MHz-8T0959754A
315MHz-8T0959754C
315MHz-8T0959754J

PCB mainboard no:233.453.111-05(06)
315MHz-4G0959754G
315MHz-4G0959754J
315MHz-4H0959754G
315MHz-4H0959754J
315MHz-8T0959754A
315MHz-8T0959754C
315MHz-8T0959754G
315MHz-8T0959754J
433MHz-8T0959754
868MHz-4G0959754K
868MHz-4H0959754K
868MHz-8T0959754D

PCB mainboard no:233.453.211-01(02)
315MHz-4G0959754J
315MHz-8H0959754DB
315MHz-8K0959754
315MHz-8K0959754C
315MHz-8K0959754G

PCB mainboard no:233.628.011-03
433MHz-7P6959754AF
868MHz-7P6959754L

PCB mainboard no:233.628.011-04
315MHz-7P6959754AR
433MHz-7P6959754AO

PCB mainboard no:233.628.021-02
868MHz-7P6959754AT

BMW    E series chassis    Aftermarket key
genuine key 315
genuine key 868

F series chassis
315MHz-5WK49663
315MHz-HUF5662
433MHz-5WK49662
433MHz-HUF5663
433MHz-HUF5767
868MHz-5WK49661
868MHz-HUF5661

Porsche
315MHz-7PP959753BM
433MHz-7PP959753AJ
433MHz-7PP959753BN
433MHz-7PP959753BQ
433MHz-7PP959753BS

Land Rover
315MHz-YWX000071
433MHz-5E0U40247
433MHz-YWX000061

Volvo
900MHz-5WK49266

Buick
315MHz-4 button-13500225/13584825
315MHz-5 button-13500224/13584825

Chevrolet
315MHz-4 button-13500222
315MHz-4 button-13500318/13584828
315MHz-5 button-13500221
315MHz-5 button-13500319/13584829
433MHz-2 button-13500218

Cadillac
315MHz-5 button-NBG009768T

GM
433MHz-3 button
433MHz-4 button
433MHz-5 button

Opel
433MHz-2 button-13149645
433MHz-2 button-13149658
433MHz-2 button-13188281
433MHz-2 button-13188284
433MHz-2 button-13500235
433MHz-3 button-13500234

Peugeot  Citroen    21676652
E25CI009
E28CI01B
E33CI002

Hyundai  KIA
CMFCH02
CMFEU03
HMFEU04
HMFKR04
HMFNA04

Mitsubishi
433MHz-G8D-644M

Renault
433MHz-285971998R
433MHz-285974100R
433MHz-285975779R
433MHz-805673071R

Dodge    Jeep   Chrysler    567.737.061
567.783.031
KOBOTO4A
M3N5WY72XX
M3N5WY783X
OHT692427AA
OHT692713AA
